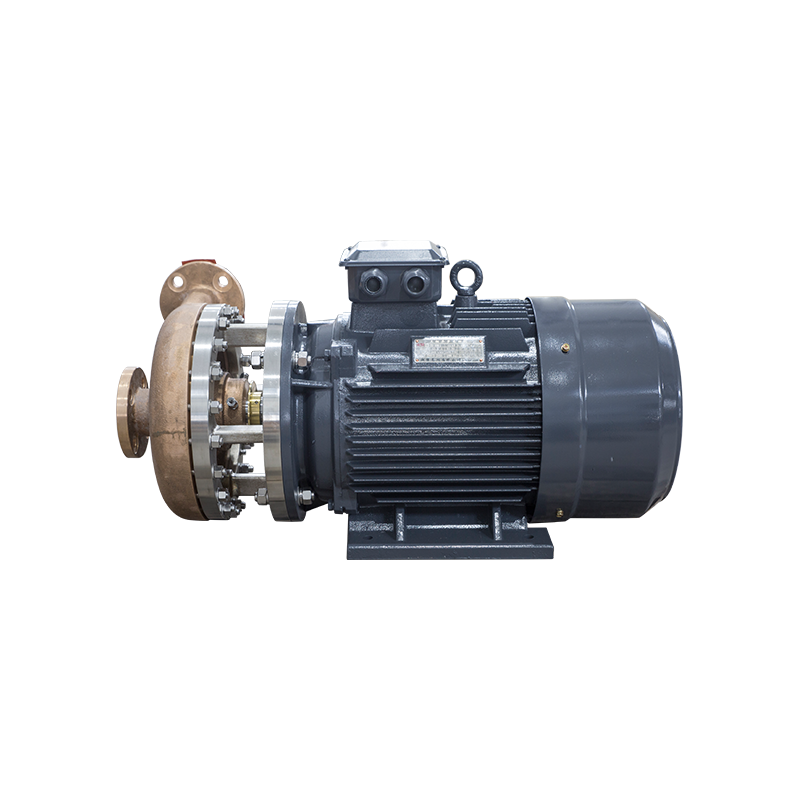

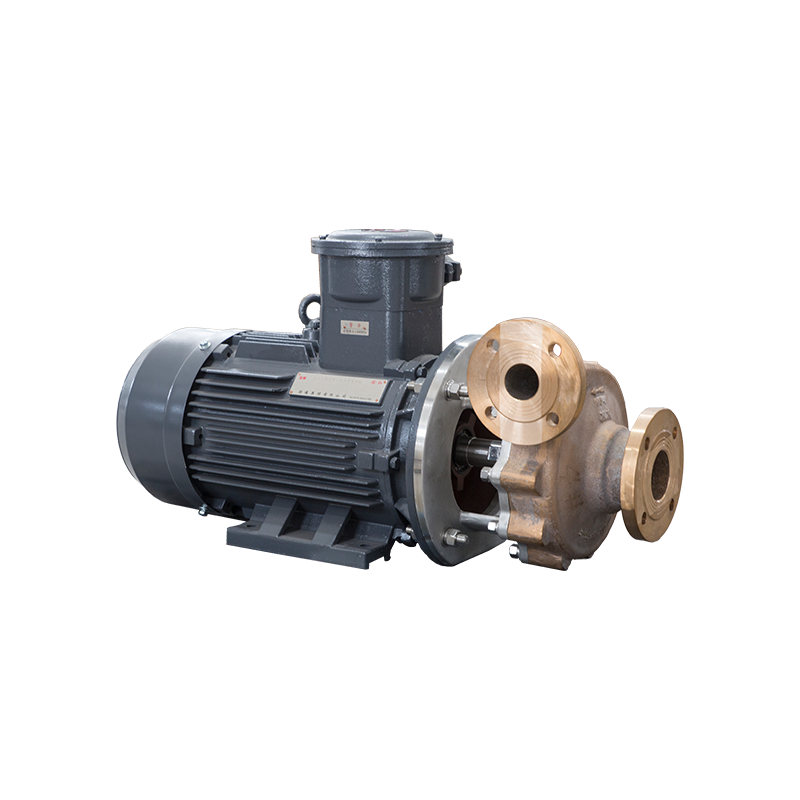

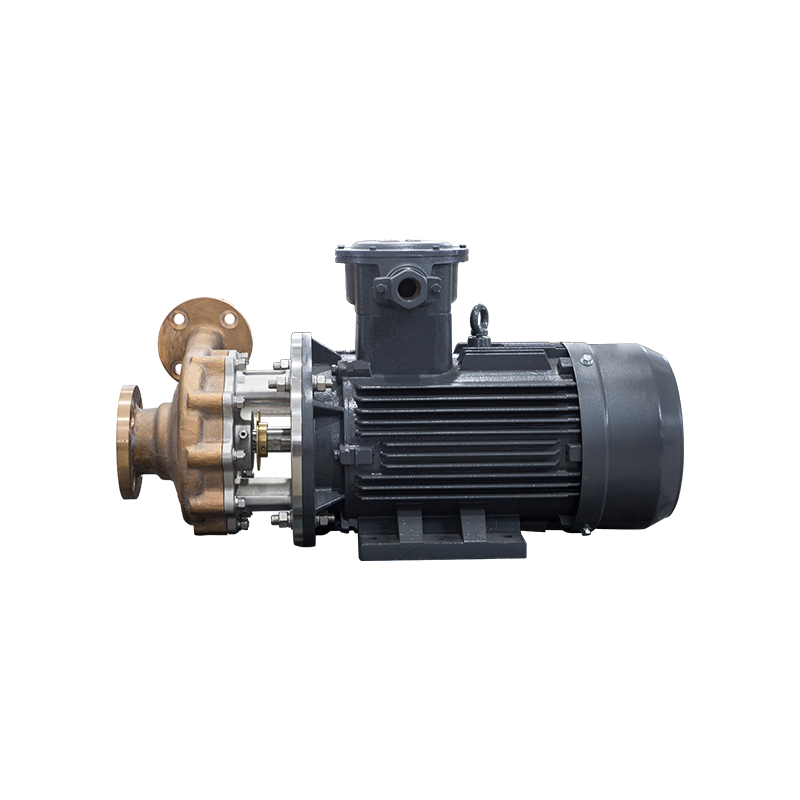

Cryogenic centrifugal pump

Centrifugal cryogenic liquid pumps are mainly used for the transportation of cryogenic liquids (liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas) between storage tanks and between storage tanks and tankers. It can greatly shorten the liquid delivery time and reduce liquid waste. At the same time, the centrifugal cryogenic liquid pump has been widely used in various air separation devices.

Centrifugal cryogenic liquid pump produced by our company has many advantages, such as compact structure, smooth operation, long life, low noise and convenient maintenance. Its excellent performance and reasonable price have been well received by users at home and abroad, and it has become the best choice to replace imported products.

The working principle of the centrifugal pump is: when the centrifugal pump is working, the liquid is continuously sucked into the pump by the pressure difference inside and outside the pump, and the liquid obtains kinetic energy by the high-speed rotation of the impeller; The kinetic energy of the liquid is converted into pressure energy.

Specifications
FAQ
Do You Have Any Question?

Suitable Media: LO2、LN2、LAr、LNG

Scope of Application:

Filling of cryogenic tank wagons

Unloading of cryogenic tank wagons

Delivery of cryogenic liquids

Main Technical Parameters:

Flow: 5-200m³/h

Head: 10- 1000m

Optional Configuration:
Stationary motor/Variable frequency speed motor
Safety valve/Cryogenic stop valve
Liquid outlet pressure interlocking device

Product advantages:

1. Small volume, compact and simple structure

2. The volute and impeller are made of high-performance copper alloy to ensure safety under liquid oxygen conditions

3. Mature and reliable mechanical seal, strong cavitation resistance, long life, easy installation and replacement

4. High strength low temperature stainless steel shaft

5. The impeller and rotor have undergone static and dynamic balance tests to ensure the stability of the rotor.

6. The variable frequency speed regulating motor can be selected to make the pump operate in a wider range

7. The inlet and outlet flanges are equipped with flexible connections and inlet filters, and the operation is stable under the vibration of the pipeline.

8. Factory liquid nitrogen test run

Model	Type	Flow m³/h	Inlet pressure Mpa	Head m
BH-25/60	Horizontal Centrifugal	25	0.02~0.5	60
BH-25/90		25		90
BH-40/90		40		90
BH-15/135		15		135
BH-25/260		25		260
BH-55/260		55		260
BH-80/280		80		280

HAVEN'T FOUND THE PRODUCTS YOU WANT?

Customized with drawings and samples

Are you a manufacturer or a trade company?

We are a factory specializing in cryogenic equipment. From the source development and design, to production and shipment, and later equipment maintenance guidance, we directly connect with customers.

What is your minimum order quantity requirement of your cryogenic pump?

We require really low quantity to start the order for our cryogenic pump, from 1 set.

Do you provide sample of cryogenic pump for evaluation?

As for cryogenic pump, we can provide our technical data and product pictures and videos for your evaluations.

What is your key products or your strengths?

We are strong at cryogenic equipments like reciprocating pump,centrifugal pump, submersible pump, ambient vaporizer,water bath vaporizer, pump skid(pump truck) and so on.

Have you got design or technical team?

Yes, we have very strong & profession technical and development teams who can work with you from the very beginning of the products as pictures or just idea to the delivery.

What is the payment method?

We will confirm the payment with you when quoting, like FOB, CIF, CNF or others.
Payment term:T/T is the main payment, and L/C at sight is acceptable as well.

What’s your delivery method?

Usually we ship by sea, because we are in Huzhou city, very close to Shanghai port and Ningbo port, so it is very convenient to export by sea. Of course, we can also help you with rail and air transportation.

What is the lead time of a normal order for your cryogenic pumps?

Normally, the delivery time for cryogenic pump is around 4 weeks.
Let’s start your project together

If you need consultation, please contact us, we will get back to you as soon as possible!

Huzhou Baihui Cryogenic Equipment Co., Ltd

Guarantee High Quality With Our Expertise

Huzhou Baihui Cryogenic Equipment Co., Ltd is famous China Cryogenic centrifugal pump Manufacturers and Wholesale Cryogenic centrifugal pump suppliers. Since its establishment, our company has been focusing on the design, production, sales and service of the various cryogenic liquid pumps in the industrial gases and gas industry. The company has strong technical and advanced production equipment. It has a group of senior designers and excellent employees specializing in the design and manufacture of gas and gas equipment.

Our company is willing to "integrity, innovation, pragmatic, win-win" spirit of enterprise, adhering to create value for users, reduce operating costs of development philosophy! We will wholeheartedly provide new and old customers with high-quality and low-cost products and considerate services, and join hands with our customers to create a better future.
