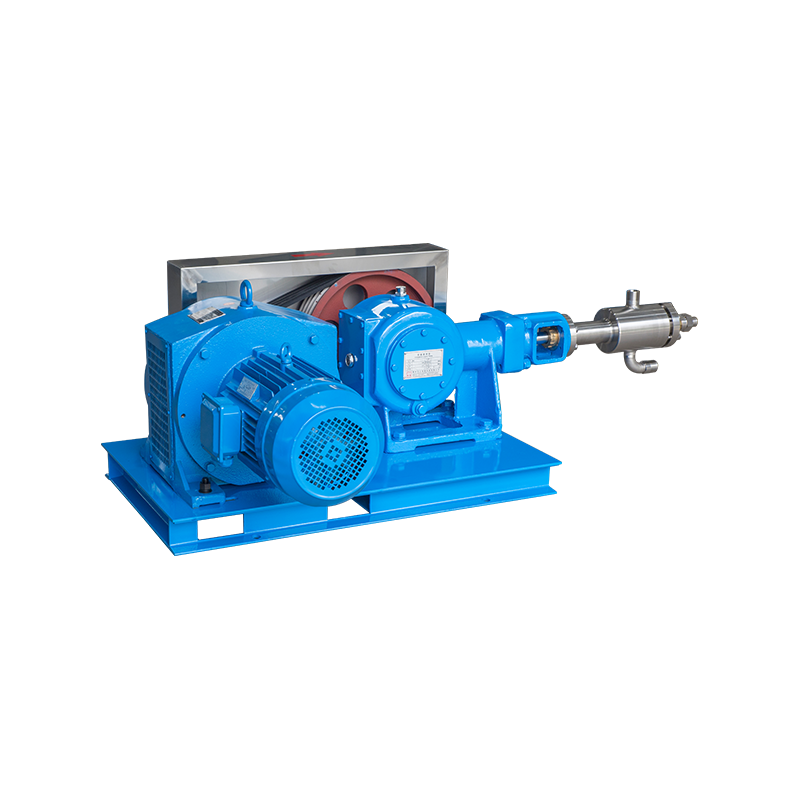

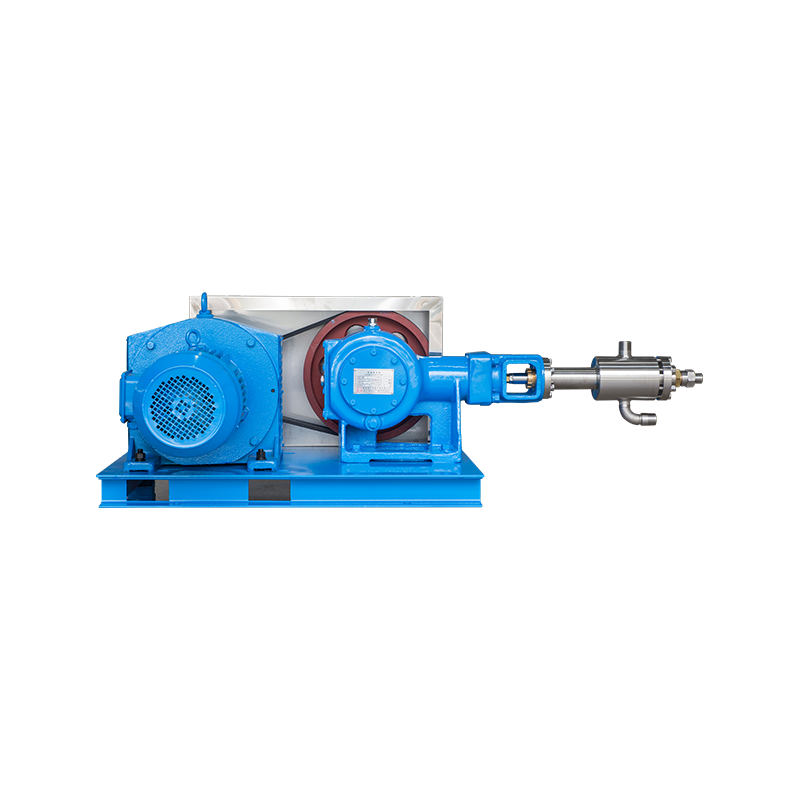

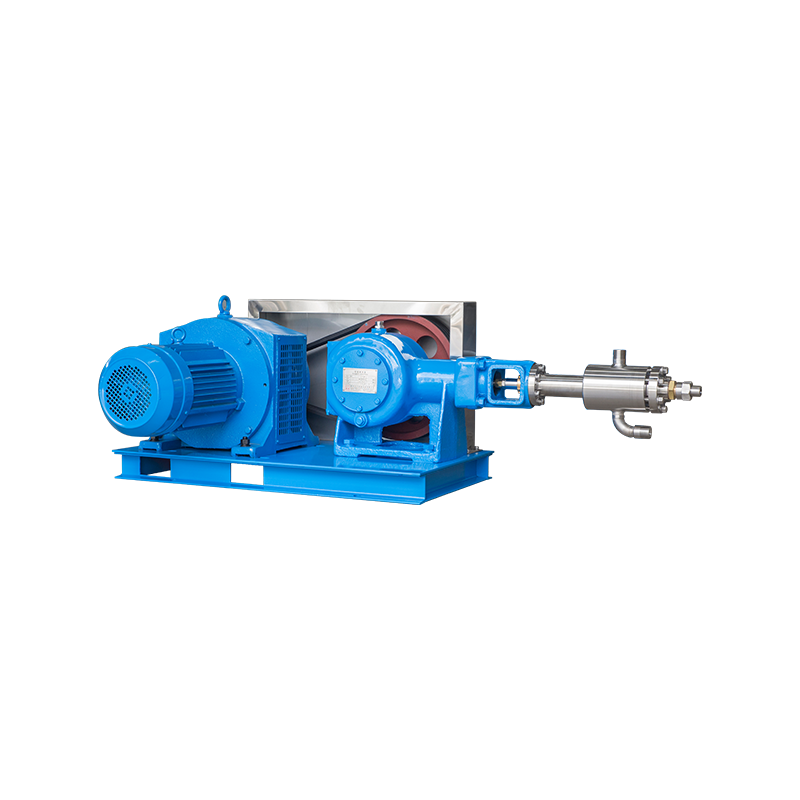

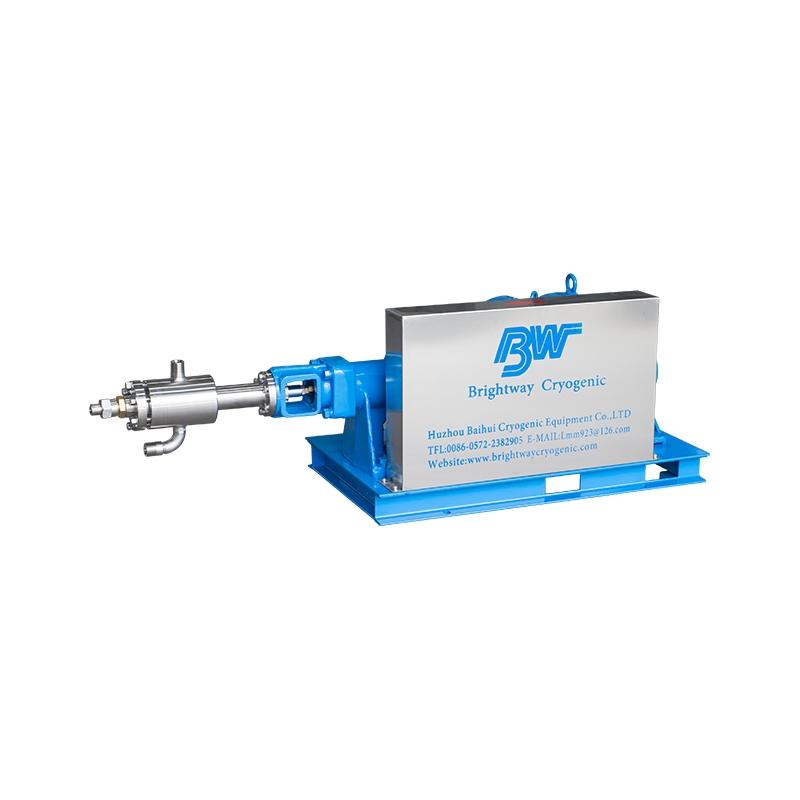

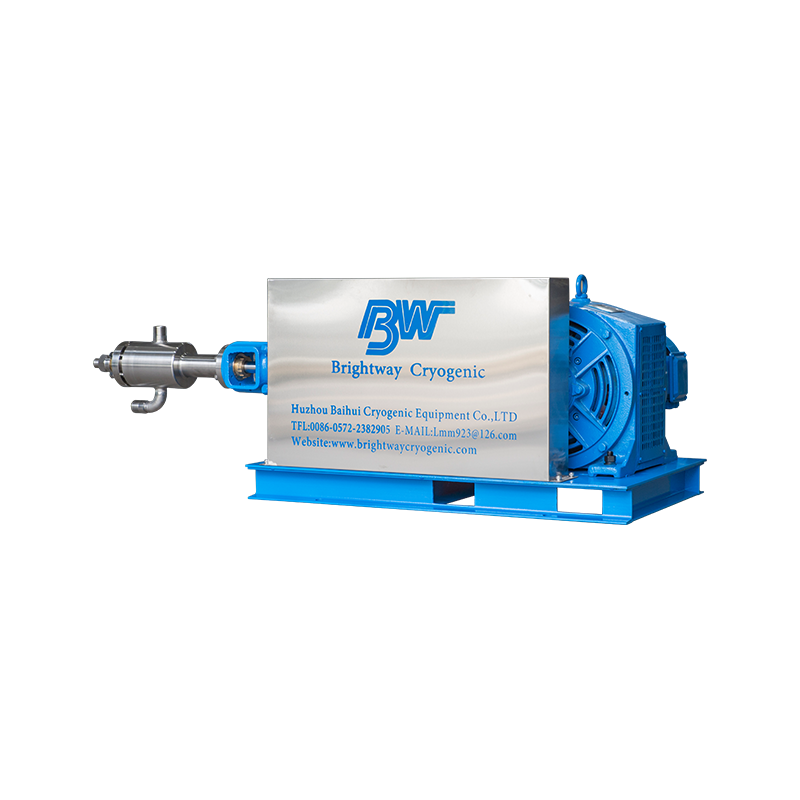

Cylinder filling pump of carbon dioxide

Cryogenic liquid pump

The pump is mainly composed of motor, electric control cabinet, pulley, transmission case and cold end, which are assembled on the common base.
The pump adopts materials with good wear resistance as piston ring and guide ring, so its working life is prolonged. The seal is composed of sealing material with excellent sealing performance, which ensures that the pump can operate reliably and without failure for a long time under normal working conditions.
The pump has novel structure, excellent material, exquisite processing, stable performance, easy operation, convenient maintenance and long service life;
Suitable Media: Liquid CO2
Contact Us
  • Specifications
  • FAQ
  • Do You Have Any Question?
  • Scope of Application:
    Filling of carbon dioxide liquid cylinders
    Air supply、air distribution systems

    Main Technical Parameters:
    Flow : 100-4000L/h
    Max outlet pressure: 10.0MPa

    Optional Configuration:
    Stationary motor/Electromagnetic speed regulating machine/Variable frequency speed motor
    Safety valve/Cryogenic stop valve
    Gas return temperature interlocking device
    Liquid outlet pressure interlocking device

    Model Type Flow range L/h Inlet pressure MPa Max Outlet Pressure Mpa
    BH100-400/100 Single
    Horizontal
    Piston
    100-400 1.38~2.4 10
    BH300-900/100 300-900
    BH600-1200/100 600-1200
    BH1000-2000/100 1000-2000
    BH1500-3000/100 1500-3000
    BH2000-4000/100 Double
    Horizontal
    Piston
    2000-4000 1.38~2.4 10
    BH3000-6000/100 3000-6000

    HAVEN'T FOUND THE PRODUCTS YOU WANT?

    Customized with drawings and samples

    CONTACT US

Huzhou Baihui Cryogenic Equipment Co., Ltd

Guarantee High Quality With Our Expertise

Huzhou Baihui Cryogenic Equipment Co., Ltd is famous China Cylinder filling pump of carbon dioxide Manufacturers and Wholesale Cylinder filling pump of carbon dioxide suppliers. Since its establishment, our company has been focusing on the design, production, sales and service of the various cryogenic liquid pumps in the industrial gases and gas industry. The company has strong technical and advanced production equipment. It has a group of senior designers and excellent employees specializing in the design and manufacture of gas and gas equipment.

Our company is willing to "integrity, innovation, pragmatic, win-win" spirit of enterprise, adhering to create value for users, reduce operating costs of development philosophy! We will wholeheartedly provide new and old customers with high-quality and low-cost products and considerate services, and join hands with our customers to create a better future.
